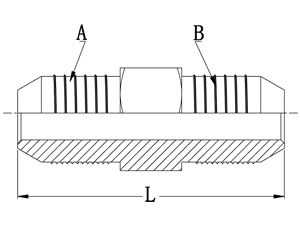

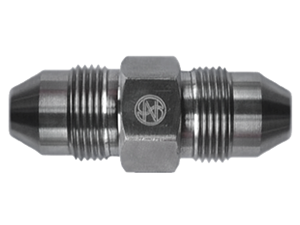

高压外丝外锥接头
| 产品编号 | 5-21112 | 5-21113 | 5-21114 | 5-21115 | 5-21116 | |
|---|---|---|---|---|---|---|
| 压力(bar) | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 尺寸 | A | 9/16" | 1/4" | 1/4" | 3/8" | 3/8" |
| B | 9/16" | 1/4" | 3/8" | 3/8" | 9/16" | |
| L(mm) | 65 | 43 | 55 | 58 | 65 | |
中压外丝外锥转外丝内锥接头
| 产品编号 | 5-21117 | 5-21118 | 5-21119 | 5-21120 | 5-21121 | |
|---|---|---|---|---|---|---|
| 压力(bar) | 1400 | 1400 | 1400 | 1400 | 1400 | |
| 尺寸 | A | 15/16 | 15/16 | 15/16" | 1" | 3/4" |
| B | 1" | 3/4" | 9/16" | 1" | 1" | |
| L(mm) | 80 | 75 | 70 | 80 | 80 | |

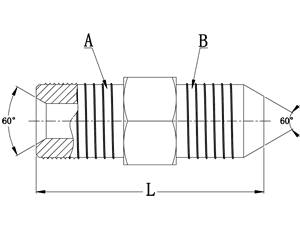

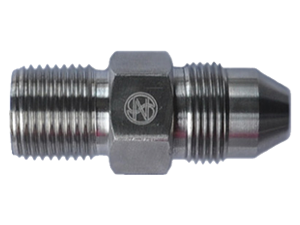

高压外丝外锥转外丝内锥接头
| 产品编号 | 5-21122 | 5-21123 | 5-21124 | 5-21125 | 5-21126 | |
|---|---|---|---|---|---|---|
| 压力(bar) | 3000 | 3000 | 3000 | 3000 | 3000 | |
| 尺寸 | A | 9/16" | 9/16" | 7/8" | 1-1/8" | 1-1/8" |
| B | 9/16 | 7/8" | 7/8" | 7/8" | 1-1/8" | |
| L(mm) | 45 | 52 | 58 | 60 | 75 | |
